Magnaflux Zyglo® ZL-27A Post Emulsifiable Fluorescent Penetrant

$719.00$5,650.00

Zyglo® ZL-27A Post Emulsifiable Fluorescent Penetrant

Level 3 Post Emulsifiable Fluorescent Penetrant

Post-emulsifiable ZL-27A penetrant is a high-sensitivity penetrant designed for inspection with the use of an emulsifier to remove surface penetrant. Both Method B lipophilic emulsifier ZE-4E and Method D hydrophilic emulsifier ZR-10E can be used to remove surface ZL-27A penetrant before developer application. Developers can be ZP-4B dry powder developer, ZP-14A water soluble developer in a non-agitated tank, ZP-5B water suspendible developer in an agitated tank or ZP-9F non-aqueous developer. With a UV-A light source, flaw indications will appear as a bright green-yellow fluorescence. ZL-27A has a high flash point, and is designed to be used in open dip tanks.

ZL-27A is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.

Benefits

  • Bright indications
  • Resists over removal
  • High flash point
  • QPL SAE AMS 2644 Qualified Product List
  • Approved for use by Pratt & Whitney
Clear

Product Description

Zyglo® ZL-27A Post Emulsifiable Fluorescent Penetrant

Level 3 Post Emulsifiable Fluorescent Penetrant

Post-emulsifiable ZL-27A penetrant is a high-sensitivity penetrant designed for inspection with the use of an emulsifier to remove surface penetrant. Both Method B lipophilic emulsifier ZE-4E and Method D hydrophilic emulsifier ZR-10E can be used to remove surface ZL-27A penetrant before developer application. Developers can be ZP-4B dry powder developer, ZP-14A water soluble developer in a non-agitated tank, ZP-5B water suspendible developer in an agitated tank or ZP-9F non-aqueous developer. With a UV-A light source, flaw indications will appear as a bright green-yellow fluorescence. ZL-27A has a high flash point, and is designed to be used in open dip tanks.

ZL-27A is listed on the QPL SAE AMS 2644 Qualified Product List and is approved for use by Pratt & Whitney.

Benefits

  • Bright indications
  • Resists over removal
  • High flash point
  • QPL SAE AMS 2644 Qualified Product List
  • Approved for use by Pratt & Whitney

Additional Information

Voltage
Package/Kit
Size

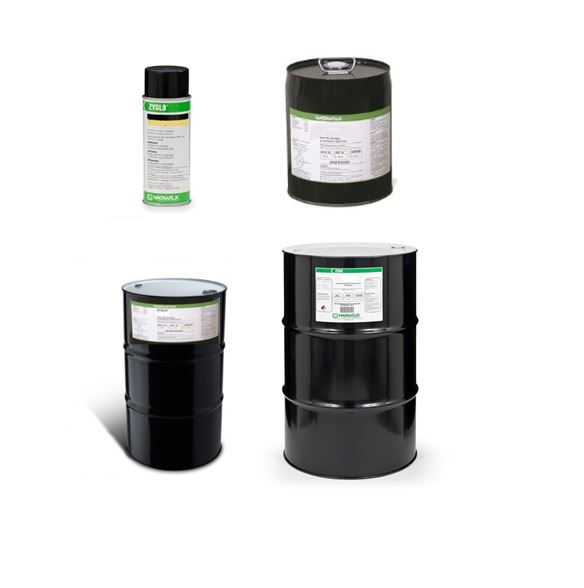

Case of 12 – 16 oz. aerosols, 5 gallon, 20 gallon, 55 gallon drum

Click on the file name below to view or download:

ZL2C-ZL27A-ZL37-PE-Penetrants-PDS-English-1
