Product Description

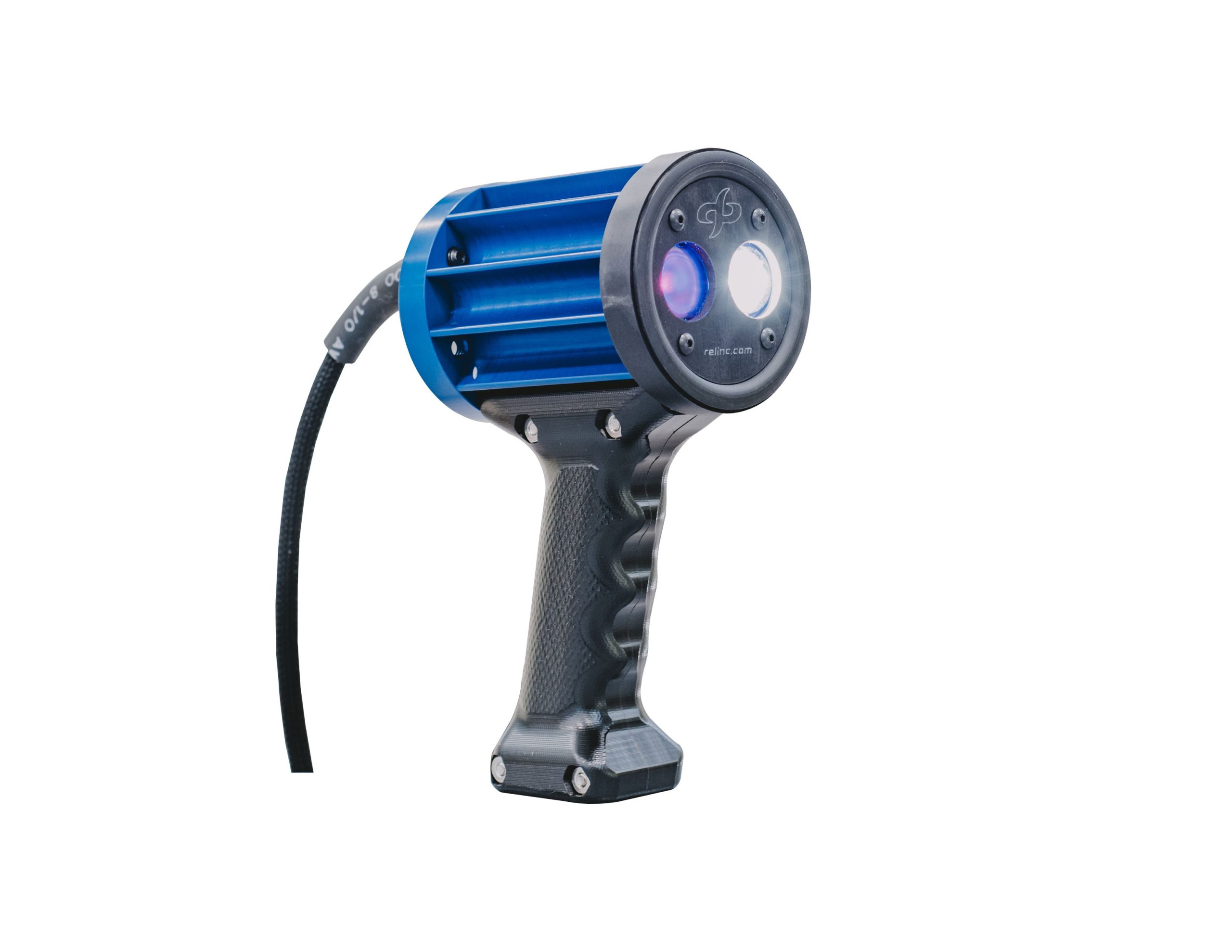

C4 Magnum-GO LED UV-A Lamp, Corded
The C4 Magnum-GO is designed for all intensity requirements of Fluorescent Penetrant Inspection (FPI)
and Magnetic Particle Inspection (MPI). REL’s C4 Magnum-GO inspection lamps contain high flux UV-A and
white light LED emitters with built-in static-electric discharge circuits. The C4 Magnum-GO provides a
10-inch diameter of UV-A intensity >1000 µW/cm² at 15 inches. The integral filter in the UV-A emitter
limits the visible light to 20 lux (1.86 foot-candles) at 15 inches and 5 lux (0.47 foot-candles) at 36 inches.
The LED white light provides an intensity > 700-foot candles at 15 inches. The lamp’s electrical
components are IP67 sealed and passively cooled within an engineered finned housing manufactured from
military-grade aluminum. The lamp performs in all environments regardless of ambient conditions.
The C4 Magnum-GO LED UV-A with white light will survive the toughest, wettest, and most severe work
environments on the planet!
